Auto Function ROI#

// Select auto function ROI 1
camera.AutoFunctionROISelector.SetValue(AutoFunctionROISelector_ROI1);
// Specify position and size of the auto function ROI selected
camera.AutoFunctionROIOffsetX.SetValue(10);
camera.AutoFunctionROIOffsetY.SetValue(10);
camera.AutoFunctionROIWidth.SetValue(500);
camera.AutoFunctionROIHeight.SetValue(400);
// Enable Balance White Auto for the auto function ROI selected
camera.AutoFunctionROIUseWhiteBalance.SetValue(true);
// Enable the 'Brightness' auto function (Gain Auto + Exposure Auto)
// for the auto function ROI selected
camera.AutoFunctionROIUseBrightness.SetValue(true);

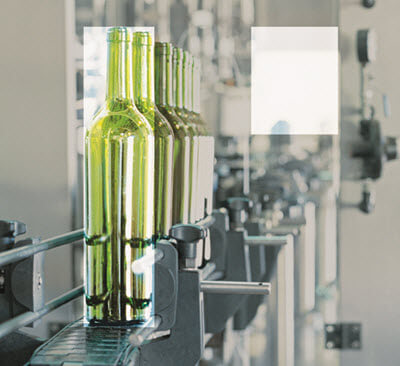

// Highlight the auto function ROI selected
camera.AutoFunctionROIHighlight.SetValue(true);

INodeMap& nodemap = camera.GetNodeMap();
// Select auto function ROI 1
CEnumParameter(nodemap, "AutoFunctionROISelector").SetValue("ROI1");
// Specify position and size of the auto function ROI selected
CIntegerParameter(nodemap, "AutoFunctionROIOffsetX").SetValue(10);
CIntegerParameter(nodemap, "AutoFunctionROIOffsetY").SetValue(10);
CIntegerParameter(nodemap, "AutoFunctionROIWidth").SetValue(500);
CIntegerParameter(nodemap, "AutoFunctionROIHeight").SetValue(400);
// Enable Balance White Auto for the auto function ROI selected
CBooleanParameter(nodemap, "AutoFunctionROIUseWhiteBalance").SetValue(true);
// Enable the 'Brightness' auto function (Gain Auto + Exposure Auto)
// for the auto function ROI selected
CBooleanParameter(nodemap, "AutoFunctionROIUseBrightness").SetValue(true);
// Highlight the auto function ROI selected
CBooleanParameter(nodemap, "AutoFunctionROIHighlight").SetValue(true);

// Select auto function AOI 1
camera.AutoFunctionAOISelector.SetValue(AutoFunctionAOISelector_AOI1);
// Specify position and size of the auto function ROI selected
camera.AutoFunctionAOIOffsetX.SetValue(10);
camera.AutoFunctionAOIOffsetY.SetValue(10);
camera.AutoFunctionAOIWidth.SetValue(500);
camera.AutoFunctionAOIHeight.SetValue(400);
// Enable Balance White Auto for the auto function ROI selected
camera.AutoFunctionAOIUsageWhiteBalance.SetValue(true);
// Enable the 'Intensity' auto function (Gain Auto + Exposure Auto)
// for the auto function ROI selected
camera.AutoFunctionAOIUsageIntensity.SetValue(true);

INodeMap& nodemap = camera.GetNodeMap();
// Select auto function AOI 1
CEnumParameter(nodemap, "AutoFunctionAOISelector").SetValue("AOI1");
// Specify position and size of the auto function ROI selected
CIntegerParameter(nodemap, "AutoFunctionAOIOffsetX").SetValue(10);
CIntegerParameter(nodemap, "AutoFunctionAOIOffsetY").SetValue(10);
CIntegerParameter(nodemap, "AutoFunctionAOIWidth").SetValue(500);
CIntegerParameter(nodemap, "AutoFunctionAOIHeight").SetValue(400);
// Enable Balance White Auto for the auto function ROI selected
CBooleanParameter(nodemap, "AutoFunctionAOIUsageWhiteBalance").SetValue(true);
// Enable the 'Intensity' auto function (Gain Auto + Exposure Auto)
// for the auto function ROI selected
CBooleanParameter(nodemap, "AutoFunctionAOIUsageIntensity").SetValue(true);

// Select auto function ROI 1
camera.AutoFunctionROISelector.SetValue(AutoFunctionROISelector_ROI1);
// Specify position and size of the auto function ROI selected
camera.AutoFunctionROIOffsetX.SetValue(10);
camera.AutoFunctionROIOffsetY.SetValue(10);
camera.AutoFunctionROIWidth.SetValue(500);
camera.AutoFunctionROIHeight.SetValue(400);
// Enable Balance White Auto for the auto function ROI selected
camera.AutoFunctionROIUseWhiteBalance.SetValue(true);
// Enable the 'Brightness' auto function (Gain Auto + Exposure Auto)
// for the auto function ROI selected
camera.AutoFunctionROIUseBrightness.SetValue(true);

INodeMap& nodemap = camera.GetNodeMap();
// Select auto function ROI 1
CEnumParameter(nodemap, "AutoFunctionROISelector").SetValue("ROI1");
// Specify position and size of the auto function ROI selected
CIntegerParameter(nodemap, "AutoFunctionROIOffsetX").SetValue(10);
CIntegerParameter(nodemap, "AutoFunctionROIOffsetY").SetValue(10);
CIntegerParameter(nodemap, "AutoFunctionROIWidth").SetValue(500);
CIntegerParameter(nodemap, "AutoFunctionROIHeight").SetValue(400);
// Enable Balance White Auto for the auto function ROI selected
CBooleanParameter(nodemap, "AutoFunctionROIUseWhiteBalance").SetValue(true);
// Enable the 'Brightness' auto function (Gain Auto + Exposure Auto)
// for the auto function ROI selected
CBooleanParameter(nodemap, "AutoFunctionROIUseBrightness").SetValue(true);
